Usage¶

This tool can be run in several ways, depending on your needs.

The recommended and primary option is to use the Dash app, available either as a deployed version on Render or by running it locally. The Dash app replaces the earlier Flask version and provides the same core functionality along with additional interactive dashboard features.

For users who prefer alternative setups, legacy and advanced options remain available. These include running the Python script, creating or running a standalone executable, or using a dockerized version of the Dash app. Older options such as the Flask app and CLI tool are still documented for reference but are no longer maintained.

Option 1: Downloading the Executable File (Legacy)¶

Prerequisite 1: Install Graphviz¶

To install Graphviz on Windows, download the latest installer from the official Graphviz download page and run it, following the on-screen instructions.

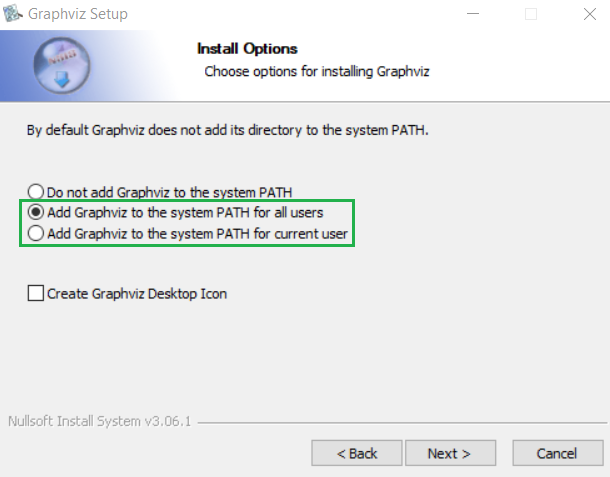

During installation, make sure that the add Graphviz to the PATH variable is checked (this is unchecked by default). This way it can be accessed from the command line.

To verify the installation, open a Command Prompt and type dot -V to check the version.

Warning

Some versions may be blocked by Microsoft Defender Smartscreen:

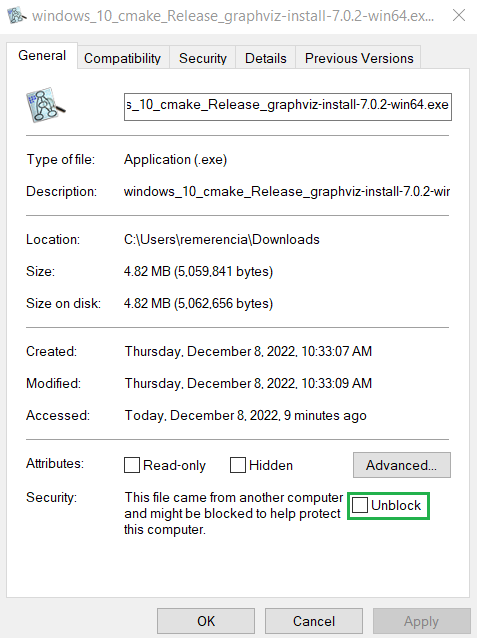

This can be bypassed by right-clicking on the file and clicking on Properties. Next, the Unblock option should be checked after which the executable can be run.

An alternative method is to run the exe using the Command Prompt: change the directory to the file’s download location and then Run the executable with the command my-executable or my-executable.exe.

Step 1: Download and Run the Executable File¶

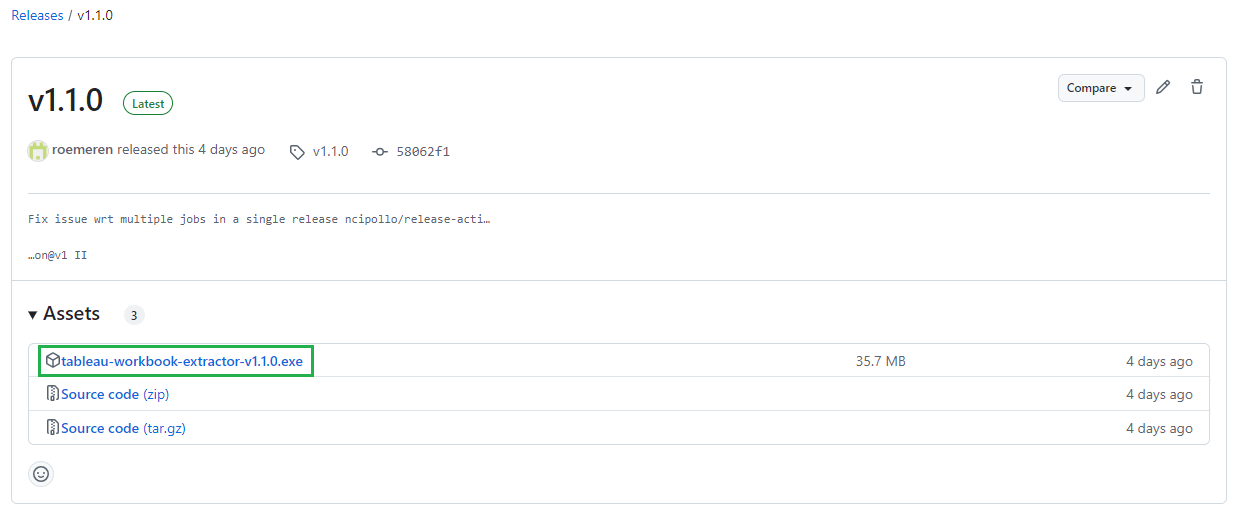

Download the executable version of the Python script cli_main.py from the GitHub Releases page:

Double-clicking on the executable will launch the tool which consists of the following steps:

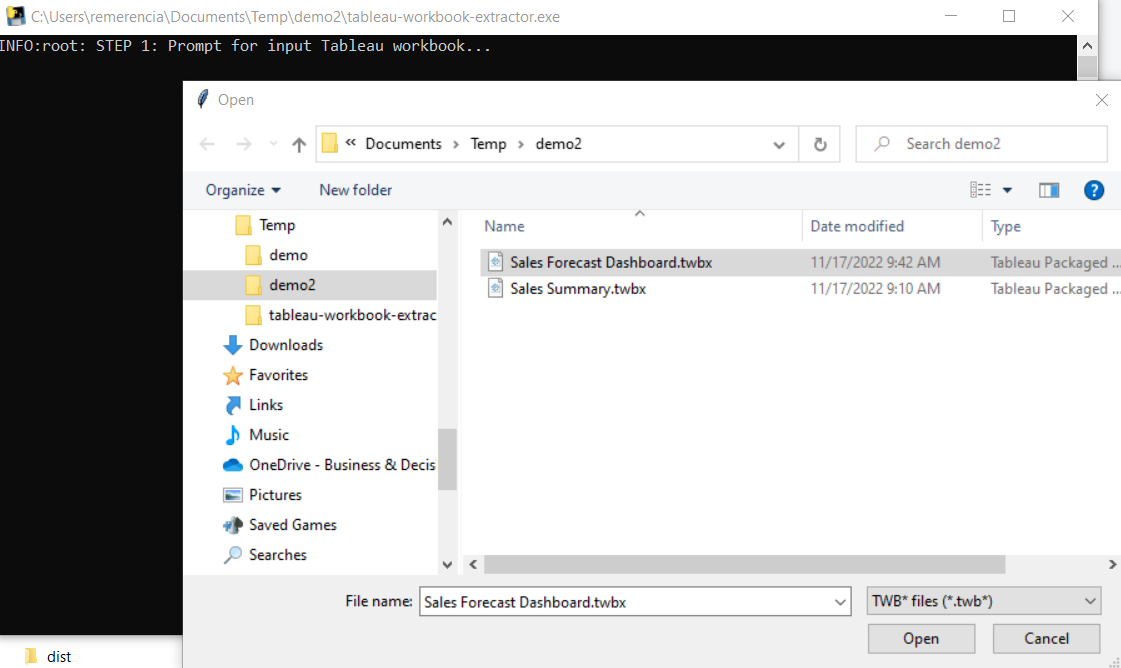

First, the user needs to browse to a local Tableau workbook (.twb or .twbx file):

Once the file is selected it will be processed, and progress can be tracked through printed log lines and/or progress bars.

If everything runs as expected the user is prompted to press Enter to exit the program:

In case something goes the error is printed out after which the user is also prompted to press Enter to exit.

Upon completion, the output files will be stored in a newly created folder named <my workbook> Files within the same directory as the selected workbook:

Note

The main advantage of the executable is that it is fast and straightforward, allowing users to run the tool without the need to clone the repository or set up a Python environment first.

The main drawback is that Graphviz must be installed separately and configured correctly for the executable to function properly.

Option 2: Accessing the Application on Render (Recommended)¶

A Dash app version of the tool has been dockerized and deployed as a web application using Render, accessible at https://tableau-workbook-extractor.onrender.com/.

Running the Dash application is an alternative way to use the tool, offering similar functionality to running an executable:

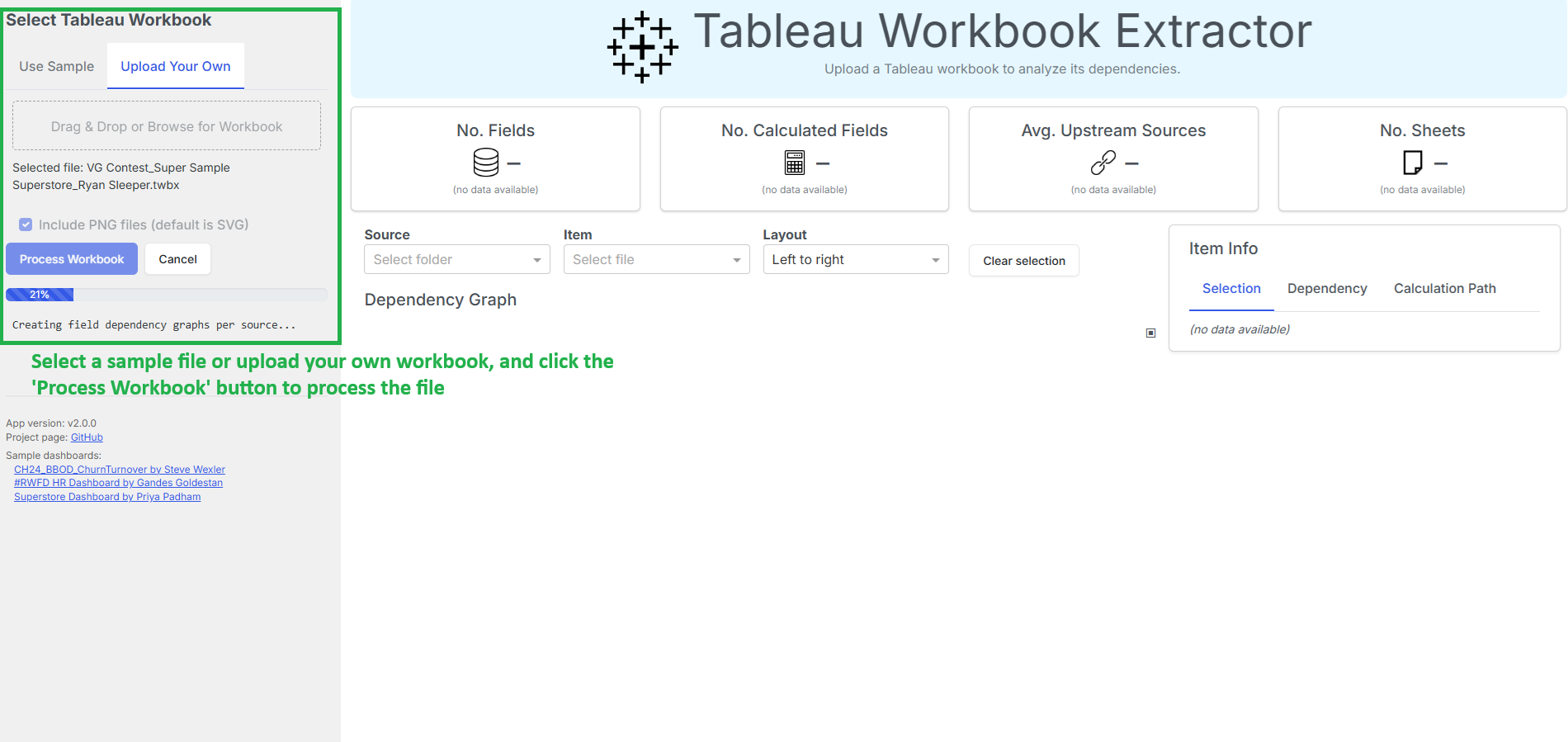

First, the user needs to either select one of the sample workbooks or upload a local Tableau workbook (.twb or .twbx file) using a browse button in the app
Once the file is selected a button can be clicked to execute the processing. Progress is tracked and checked through the web interface and an output log file instead of printed logs on the command line.

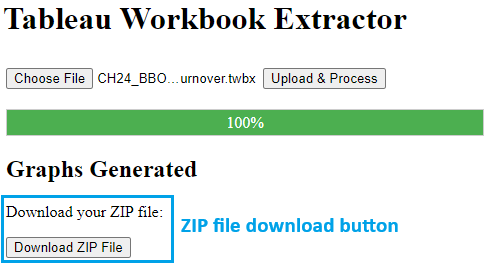

Upon completion, the generated output are zipped which can be downloaded by the user (see image below).

By default, the application generates only SVG dependency graphs, but users can optionally enable PNG generation through a checkbox on the upload page before starting the processing.

Note

The main advantage of this web app compared to running the executable is that it eliminates the need for users to install Graphviz separately, as Docker is used to package and deploy the entire application along with all its dependencies, including the Python version and required packages.

The main drawback is that the app is hosted on the free tier of Render, which can result in longer loading times as the Docker container needs to be started up first.

Option 3: Executing the Python Script in the Command Line (Legacy)¶

This section explains how to run the Python script cli_main.py directly on your local machine, bypassing the need for the executable. Running the script locally provides more flexibility, allowing you to customize the code, use virtual environments, or troubleshoot in real-time.

However, to ensure the tool runs properly, you will need to install both Git and Graphviz.

Prerequisite 1: Install Git¶

To install Git on Windows, download the installer from the official Git for Windows site and follow the setup wizard to complete the installation.

After installation, open Git Bash and verify the installation by typing: git --version, allowing you to clone repositories from GitHub and other sources.

Prerequisite 2: Install Graphviz¶

For instructions on how to install Graphviz, see Install Graphviz

Step 1: Clone the Repository¶

You need to clone a Git repository to create a local copy of the project on your computer.

To do this, open a new PowerShell terminal and set the working directory to the directory where you’ll clone the tableau-workbook-extractor git repository. For example:

$ cd C:\Users\jdoe\Documents\Repositories\

The repository can then be cloned (using HTTPS) by running this command:

$ git clone https://github.com/roemeren/tableau-workbook-extractor.git

Step 2: Create an Environment¶

Creating a virtual environment ensures that the project dependencies are isolated from other projects on your system, preventing conflicts.

Installing dependencies from a requirements.txt file guarantees that you have all the necessary packages and their correct versions needed for the project to run properly.

To do this, set the working directory to the cloned repository from the previous step, for example:

$ cd tableau-workbook-extractor

Next, run the following commands to create and activate the virtual environment:

$ python -m venv .venv
$ .venv\Scripts\activate.bat

Note

If using PowerShell, the commands are slightly different. It may also be needed to temporarily override PowerShell’s Execution Policy to allow scripts to run in the current session:

$ python -m venv .venv
$ Set-ExecutionPolicy -Scope Process -ExecutionPolicy Bypass
$ .venv\Scripts\Activate.ps1

Finally, the dependencies from the provided requirements.txt file (located inside the app subfolder) can be installed using pip:

$ pip install -r app/requirements.txt

Step 3: Execute the Python Script¶

To run the application, set the working directory to the repo’s app subfolder. For example:

$ cd C:\Users\jdoe\Documents\Repositories\tableau-workbook-extractor\app

In case you are already inside the repo’s root directory it suffice to run the command cd app.

Inside this folder the main script cli_main.py will prompt the user to browse to a local .twb or .twbx file, after which the processing progress is displayed through printed log lines and progress bars for certain steps.

To execute the script:

$ python cli_main.py

Option 4: Create and Run the Executable File (Legacy)¶

Creating an executable with PyInstaller allows you to package your Python tool into a standalone application that can be run without requiring a Python environment or external dependencies on the user’s machine.

This option is useful if you want to customize the build, add specific configurations, or distribute the tool internally without relying on downloading pre-built releases from GitHub.

The general workflow involves first setting up a Python environment with all the necessary dependencies, including PyInstaller (already included in the repo’s requirements.txt file). Next, you run PyInstaller to package the tool into an executable, which can be run, shared or distributed without requiring a separate Python installation.

Prerequisites: Install Git and Graphviz¶

For instructions on how to install Git and Graphviz, see resp. Install Git and Install Graphviz.

Step 1: Clone the Repository and Create an Environment¶

For instructions on how to clone the repository and create the Python environment, see resp. Clone the Repo and Create an Environment.

Step 2: Create the Executable File¶

To create the executable file, set the working directory to the repo’s root folder. For example:

$ cd C:\Users\jdoe\Documents\Repositories\tableau-workbook-extractor

The following command will create the executable based on the application’s cli_main.py script inside the repo’s subfolder dist:

$ pyinstaller --onefile app/cli_main.py

The resulting dist\cli_main.exe executable can be moved if needed and run by double-clicking it, allowing you to browse to a file and view progress and logs directly in the command line window.

Option 5: Running the Flask Application (Legacy)¶

In this section, you’ll find instructions on how to run the Flask app version of the tool locally on your machine.

This provides the same functionality as the web version, allowing you to upload Tableau workbooks, process them, and download the results—without relying on an external deployment like Render.

Prerequisites: Install Git and Graphviz¶

For instructions on how to install Git Graphviz, see resp. Install Git and Install Graphviz.

Step 1: Clone the Repository and Create an Environment¶

See resp. Clone the Repository and Create an environment.

Step 2: Run the App¶

To run the application, set the working directory to the repo’s app subfolder. For example:

$ cd C:\Users\jdoe\Documents\Repositories\tableau-workbook-extractor\app

In case you are already inside the repo’s root directory it suffice to run the command cd app.

Inside this folder the main script web\flask_app.py will start the application that will typically be available on localhost:5000 (to be verified in the Command Prompt, check for example for Running on http://127.0.0.1:5000).

To execute the script (run as a module to ):

$ python -m web.flask_app

Note

To maintain proper relative imports, like import shared.common (referring to the shared\common.py script inside the app folder), the Flask app needs to be run as a module from the root directory as shown in the code block above, not as a script

Option 6: Running the Dash Application (Recommended)¶

The Dash app is the recommended version to run locally, as it replaces the earlier Flask interface and provides a more complete, interactive experience with additional features such as workbook statistics, dependency graphs, and field-level exploration.

Running the Dash app locally is nearly identical to running the Flask app. The only difference is the Python file that needs to be executed.

To start the app, navigate to the repo’s app subfolder:

$ cd C:\Users\jdoe\Documents\Repositories\tableau-workbook-extractor\app

Then run the Dash application module:

$ python -m web.dash_app

The dashboard will typically be available at http://127.0.0.1:8050.

Note

The Dash app supersedes the earlier Flask version, which is no longer expanded or maintained. It is therefore recommended to use the Dash app for all new analyses.

Option 7: Running the Dockerized Dash Application¶

This section explains how to run a dockerized version of the Dash app locally, providing an alternative to using the deployed version on Render. Running the tool locally in Docker ensures that all dependencies, including Graphviz, are preconfigured and removes the wait time associated with the free-tier deployment on Render.

Compared to the earlier Flask version, the Dash app offers a richer, interactive dashboard with workbook statistics, dependency graphs, and field-level exploration. It is the recommended version to use going forward.

Prerequisite: Install Docker¶

To install Docker on Windows, visit the official Docker Desktop for Windows page and follow the installation instructions.

Step 1: Build the Image¶

The app folder of the repository contains a Dockerfile that defines how to build the image, including all dependencies and exposed ports (in this case 8050).

Set the working directory to the repo’s app subfolder. For example:

$ cd C:\Users\jdoe\Documents\Repositories\tableau-workbook-extractor\app

If you are already inside the repo’s root directory, it suffices to run cd app.

Next, build the Docker image (named tableau-workbook-extractor) by running the following command (ensure that Docker Desktop is running):

$ docker build -t tableau-workbook-extractor .

Step 2: Run the Container¶

Once the image is built, start a container from it using:

$ docker run -p 8050:8050 tableau-workbook-extractor

Similar to running the Dash app locally, the dashboard will be accessible in your browser at http://localhost:8050.
