Output Files

Output Folder Structure

The output files are structured as follows:

<Root Folder>/
├── Fields/
│   └── <Workbook Name>.xlsx
├── Graphs/
│   ├── <Data Source Name 1>
│   │   ├── <Field Name 1>.png
│   │   ├── <Field Name 1>.svg
│   │   ├── <Field Name 2>.png
│   │   ├── <Field Name 2>.svg
│   │   └── ...
│   ├── <Data Source Name 2>
│   │   ├── <Field Name 1>.png
│   │   ├── <Field Name 1>.svg
│   │   ├── <Field Name 2>.png
│   │   ├── <Field Name 2>.svg
│   │   └── ...
│   ├── Parameters
│   │   ├── <Parameter Name 1>.png
│   │   ├── <Parameter Name 1>.svg
│   │   ├── <Parameter Name 2>.png
│   │   ├── <Parameter Name 2>.svg
│   │   └── ...
│   └── Sheets
│   │   ├── <Sheet Name 1>.png
│   │   ├── <Sheet Name 1>.svg
│   │   ├── <Sheet Name 2>.png
│   │   ├── <Sheet Name 2>.svg
│   │   └── ...
└── log_file.log (Optional, only for Flask app)

Clarifications w.r.t. this folder structure:

• <Root Folder> depends on how the tool is run (for more details check Usage)

  • Executable: <Workbook Folder>/<Workbook Name> Files

  • Flask: <Workbook Name> Files.zip (saved in browser default download folder)

• <Workbook Name>: name of the selected workbook

• <Data Source Name 1>: name of the first data source used in the workbook

• <Field Name 1>: name of the first (calculated) field from the parent data source used in the workbook

• For parameter and sheet dependency graphs 2 separate subfolders Parameters and Sheets are used

• log_file.log is generated only when the tool is run via the Flask app. In other cases, the output is displayed directly in the command line instead of being written to a log file.

Dependency Graphs

The images below show some examples of output dependency graphs.

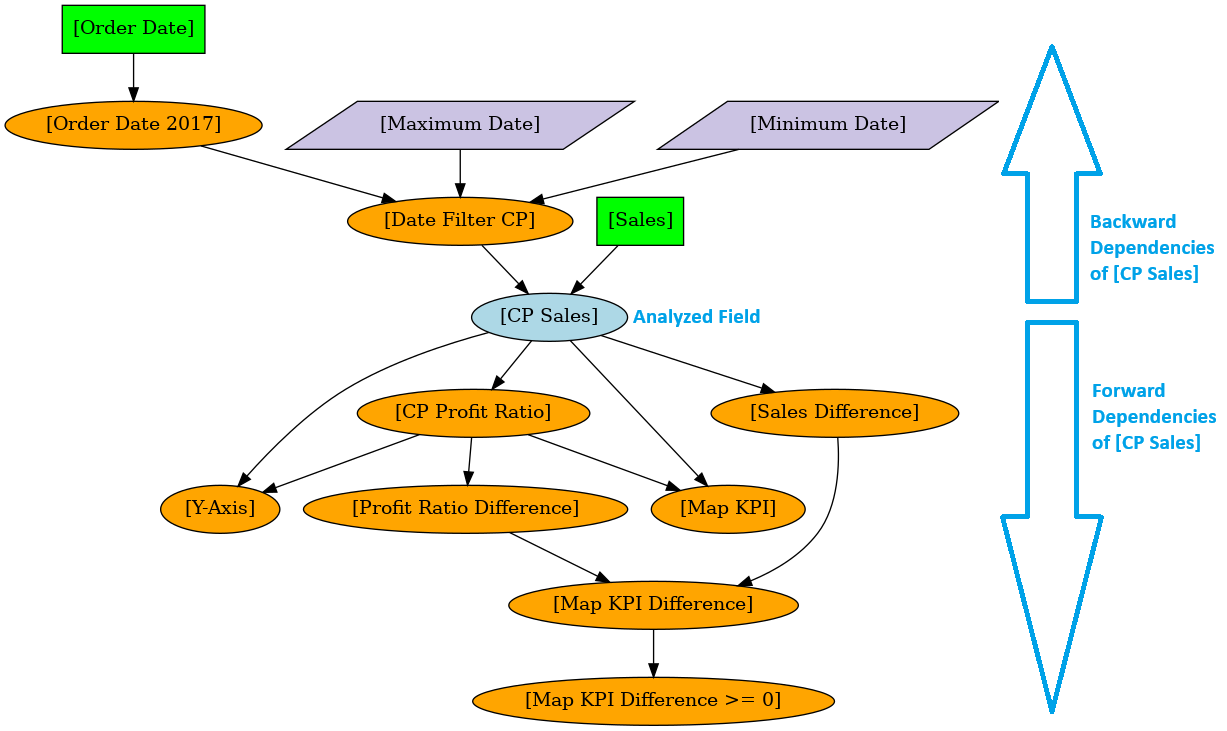

The first example is a more complex example of a field with both backward and forward dependencies (explanation: see below):

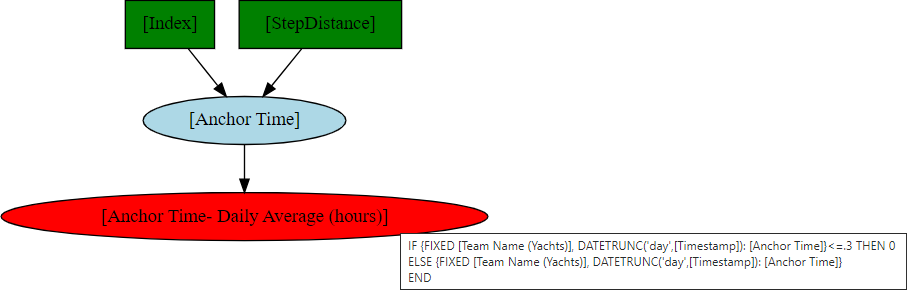

The second example is simpler but shows 1 additional node type that represents a Level of Detail (LOD) expression (red ellipse, SVG tooltip with calculation also shown):

In general, the output images can be read as follows:

• Green rectangles represent data source fields (no dependencies)

• Orange ellipses represent calculated fields (at least 1 dependency)

• Red ellipses represent calculated fields (at least 1 dependency) that contain Level of Detail (LOD) Expressions

• Purple parallellograms represent parameters

• Light blue ellipse represents the analyzed field (in this case CP Sales)

• Elements above the analyzed field are backward dependencies, meaning that they are required for the calculation of it

• Elements below the analyzed field are forward dependencies, meaning that each of these elements directly or indirectly makes use of the CP Sales calculated field.

• The levels of the graphs represent the dependency level of the different elements. (NOTE: NOT TRUE, PLEASE REWRITE) * Backward dependencies are numbered -1 (for direct backward dependencies), -2, etc. * Forward dependencies are numbered 1 (for direct forward dependencies), 2, etc.

Field dependency graphs are exported as PNG and SVG files. The advantage of the SVG files compared to the PNG files is the ability to show the field calculations in the node tooltips, which is not possible for the PNG file.

Field Metadata

The output file Fields\<Workbook Name>.xlsx contains 2 sheets fields and dependencies. Below their column descriptions are described in detail.

Column definitions for “fields” sheet

Column Name	Data Type	Description
source_label	String	Source name
field_label	String	Field name
source_field_label	String	Combination of source and field name
field_datatype	String	Values: boolean, integer, real, date, string
field_role	String	Values: dimension, measure
field_type	String	Values: nominal, ordinal, quantitative
field_aliases	String	Field aliases
field_description	String	Field description
field_hidden	Integer	Values: 0 (no), 1 (yes)
field_worksheets	String	List of sheets where the field is used
field_category	String	Values: Field, Calculated Field, Calculated Field (LOD), Parameter
field_calculation_cleaned	String	Field cleaned calculation expression
source_field_dependencies	String	List of data source field (backward) dependencies
field_backward_dependencies_max_level	Integer	Maximum backwards dependency level of the field (<= 0)
field_forward_dependencies_max_level	Integer	Maximum backwards dependency level of the field (>= 0)
n_backward_dependencies	Integer	Number of backward dependency edges
n_forward_dependencies	Integer	Number of forward dependency edges
n_backward_dependencies_field	Integer	Number of data source field (backward) dependencies (length of source_field_dependencies list)
n_backward_dependencies_lod	Integer	Number of backward dependencies that are Level of Detail (LOD) expressions
n_worksheet_dependencies	Integer	Number of sheet (forward) dependencies (length of field_worksheets)
flag_unused	Integer	Flag field is unused (1 = yes; 0 = no)

Column definitions for “dependencies” sheet

Column Name	Data Type	Description
source_label	String	Source name
field_label	String	Field name
source_field_label	String	Combination of source and field name
field_category	String	Values: Field, Calculated Field, Calculated Field (LOD), Parameter
dependency_from	String	Source node of a connection in the dependency graph
dependency_to	String	Target node of a connection in the dependency graph
dependency_level	String	Direction and level of dependency between the edge and the source field
dependency_category	String	Dependency type (values: Field, Calculated Field, Calculated Field (LOD), Parameter, Sheet)
dependency_worksheets_overlap	Integer	Number of overlapping sheets between source field and dependency
